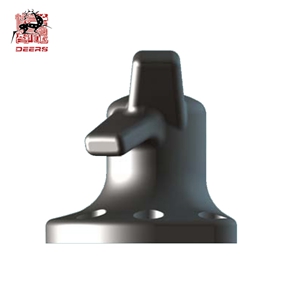

| Bollard Capacity (tonnes) |
Metric Dimensions(mm) | ||||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | Bolt Size |
Bolt Length |
Bolt Qty |
|
| 10 | 41 | 291 | 348 | 381 | 330 | 44 | – | – | 243 | 103 | – | – | 291 | 140 | M24 | 450 | 4 |
| 15 | 45 | 320 | 394 | 419 | 363 | 49 | – | – | 267 | 114 | – | – | 320 | 154 | M24 | 450 | 4 |
| 20 | 49 | 349 | 430 | 442 | 381 | 46 | – | 234 | 335 | 0 | 159 | – | 349 | 160 | M24 | 450 | 5 |
| 30 | 55 | 392 | 483 | 497 | 429 | 51 | – | 263 | 377 | 0 | 179 | – | 393 | 180 | M30 | 450 | 5 |
| 50- | 59 | 419 | 516 | 530 | 457 | 55 | – | 281 | 402 | 0 | 191 | – | 419 | 192 | M36 | 600 | 5 |
| 75 | 71 | 489 | 627 | 645 | 556 | 67 | – | 287 | 459 | 120 | 250 | – | 509 | 233 | M42 | 600 | 6 |
| 100 | 81 | 559 | 717 | 737 | 635 | 76 | 292 | 484 | 559 | 0 | 195 | 291 | 582 | 267 | M42 | 600 | 7 |
| 125 | 90 | 615 | 788 | 810 | 699 | 84 | 321 | 532 | 615 | 0 | 215 | 320 | 640 | 293 | M48 | 750 | 7 |
| 150 | 98 | 671 | 860 | 884 | 762 | 91 | 351 | 581 | 671 | 0 | 235 | 349 | 698 | 320 | M48 | 750 | 7 |
| 200 | 102 | 699 | 896 | 921 | 794 | 95 | 333 | 543 | 679 | 119 | 299 | 365 | 727 | 333 | M56 | 915 | 8 |
| Bollard Capacity (tonnes) |
Metric Dimensions(inches) | ||||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | Bolt Size |
Bolt Length |
Bolt Qty |
|
| 10 | 1-5/8 | 11-3/8 | 13-3/4 | 15 | 13 | 1-3/4 | – | – | 9-5/8 | 4-1/8 | – | – | 11-1/2 | 5-1/2 | 1 | 18 | 4 |
| 15 | 1-3/4 | 12-5/8 | 15-1/2 | 16-1/2 | 14-1/4 | 1-7/8 | – | – | 10-1/2 | 4-1/2 | – | – | 12-5/8 | 6 | 1 | 18 | 4 |
| 20 | 2 | 13-5/8 | 16-7/8 | 17-3/8 | 15 | 1-3/4 | – | 9-1/4 | 13-1/4 | 0 | 6-1/4 | – | 13-3/4 | 6-1/4 | 1 | 18 | 5 |
| 30 | 2-1/8 | 15-1/2 | 19 | 19-5/8 | 16-7/8 | 2 | – | 10-3/8 | 14-7/8 | 0 | 7 | – | 15-1/2 | 7-1/8 | 1-1/8 | 18 | 5 |
| 50 | 2-3/8 | 16-3/8 | 20-1/4 | 20-7/8 | 18 | 2-1/8 | – | 11 | 15-7/8 | 0 | 7-1/2 | – | 16-1/2 | 7-1/2 | 1-3/8 | 24 | 5 |
| 75 | 2-7/8 | 19-1/4 | 24-5/8 | 25-3/8 | 21-7/8 | 2-5/8 | – | 11-1/4 | 18-1/8 | 4-3/4 | 9-7/8 | – | 20 | 9-1/8 | 1-1/2 | 24 | 6 |
| 100 | 3-1/4 | 22 | 28-1/4 | 29 | 25 | 3 | 11-1/2 | 19 | 22 | 0 | 7-3/4 | 11-1/2 | 22-7/8 | 10-1/2 | 1-3/4 | 30 | 7 |
| 125 | 3-1/2 | 24-1/4 | 31 | 31-7/8 | 17-1/2 | 3-1/4 | 12-5/8 | 21 | 24-1/4 | 0 | 8-1/2 | 12-5/8 | 25-1/4 | 11-1/2 | 1-3/4 | 30 | 7 |
| 150 | 3-3/4 | 26-1/2 | 33-7/8 | 34-3/4 | 30 | 3-5/8 | 13-3/4 | 22-7/8 | 26-3/8 | 0 | 9-1/4 | 13-3/4 | 27-1/2 | 12-5/8 | 2 | 36 | 7 |
| 200 | 4 | 27-1/2 | 35-1/4 | 36-1/4 | 31-1/4 | 3-3/4 | 13-1/8 | 21-3/8 | 26-3/4 | 4-5/8 | 11-3/4 | 14-3/8 | 28-5/8 | 13-1/8 | 2 | 36 | 8 |
