BASIC INFO

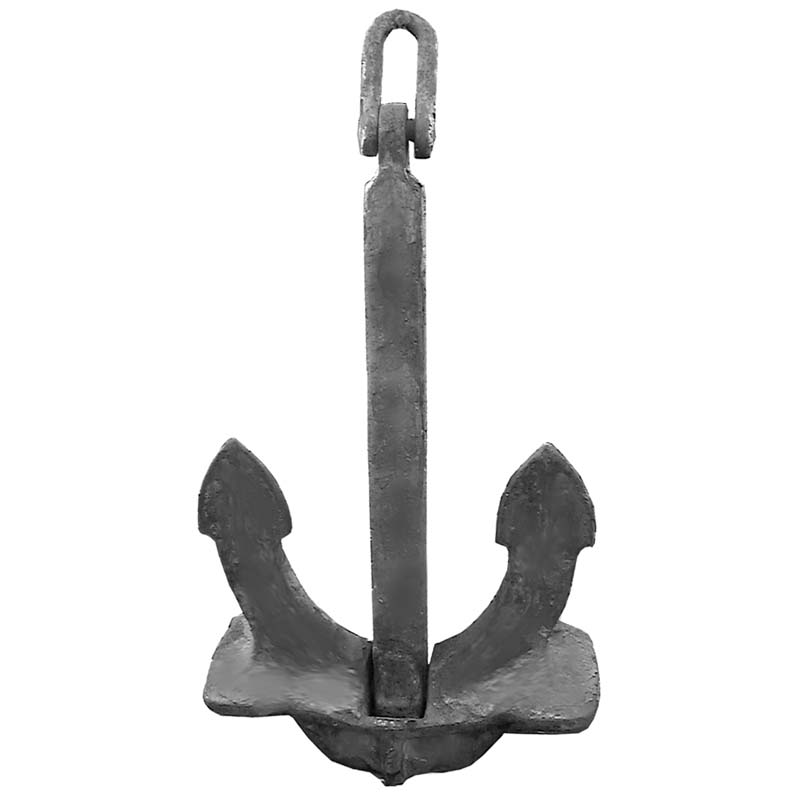

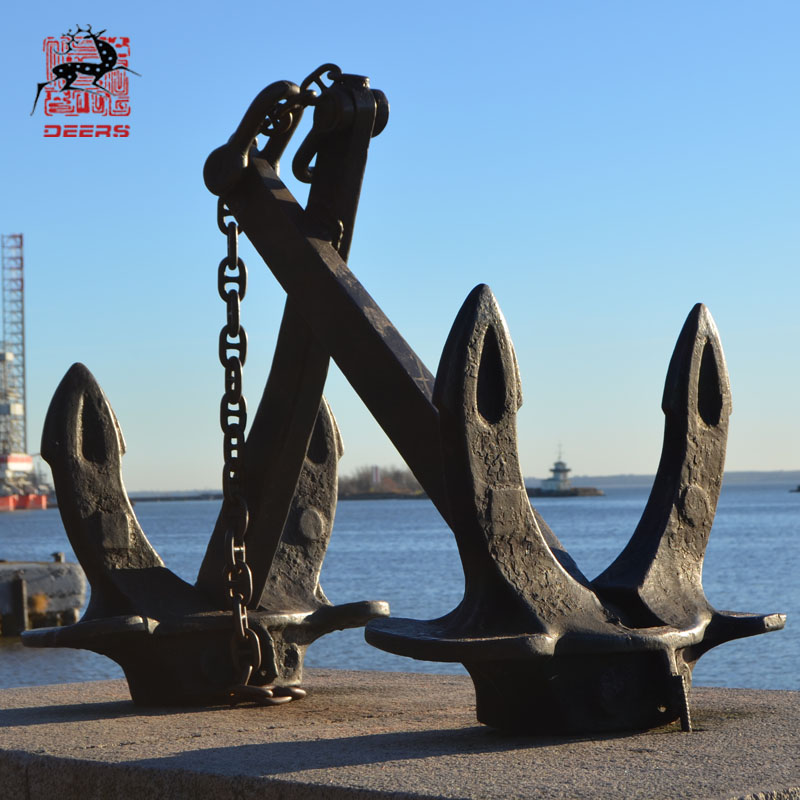

The Hall anchor has the characteristic of a Stockless anchor.

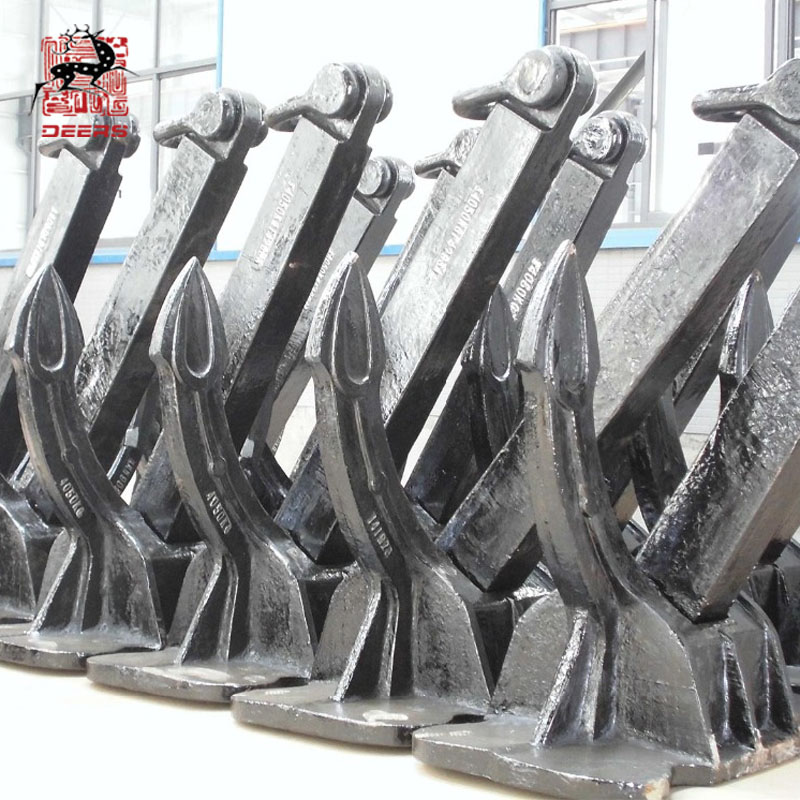

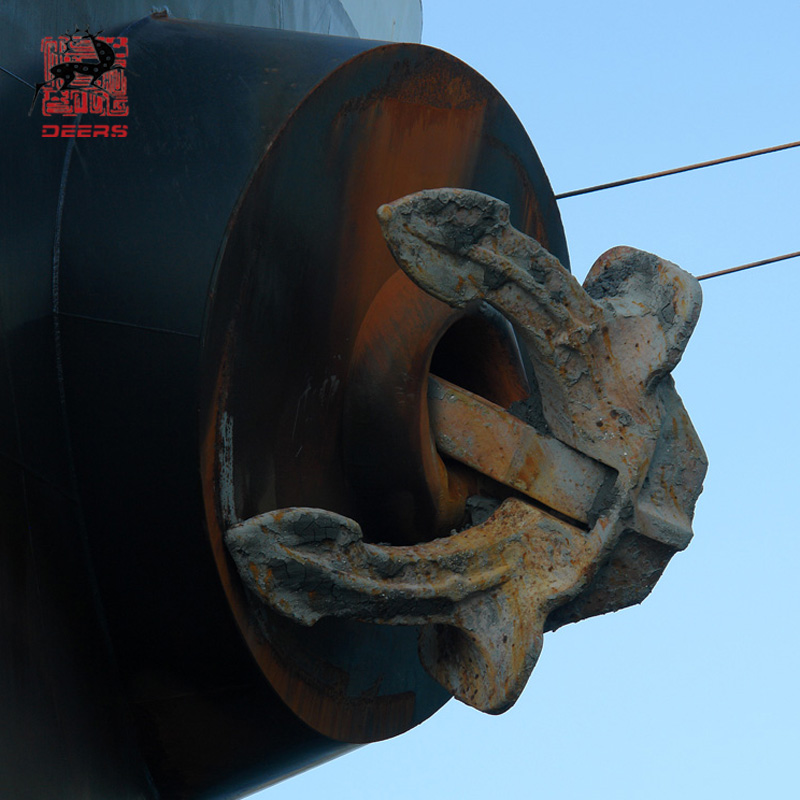

Standard stockless cast steel ship’s anchor used worldwide in both ‘pocketed’ and ‘non-pocketed’ versions, certified by all major class authorities and can be supplied from 50kg to over 29,000kg. Smaller sizes can be supplied with a galvanised finish.
| Anchor Weight (lb) | A | B | C | D | E | F | G | H |
| 1455 | 63-3/4 | 39-3/8 | 16-15/16 | 29-1/8 | 27-15/16 | 9-3/16 | 2-3/16 | 7-1/16 |
| 1985 | 61-1/16 | 43-11/16 | 18-3/4 | 32-5/8 | 30-11/16 | 10-3/16 | 2-3/8 | 7-13/16 |
| 2515 | 66-1/8 | 47-1/4 | 20-1/2 | 35-1/16 | 33-7/16 | 11-1/16 | 2-5/8 | 8-7/16 |
| 3175 | 71-5/8 | 51-3/16 | 22-1/16 | 37-13/16 | 34 | 12-1/16 | 2-13/16 | 9-1/4 |
| 3505 | 74 | 52-3/4 | 22-13/16 | 39 | 37-3/8 | 12-3/8 | 2-15/16 | 9-7/16 |
| 4230 | 78-3/4 | 56-5/16 | 24-7/16 | 41-3/4 | 39-3/4 | 13-1/4 | 3-1/8 | 10-1/8 |
| 5025 | 83-1/16 | 59-7/16 | 25-5/8 | 44-1/8 | 42-1/8 | 13-7/8 | 3-1/4 | 10-5/8 |
| 6285 | 89-3/4 | 64-3/16 | 27-9/16 | 47-5/8 | 45-1/4 | 15-1/16 | 3-9/16 | 11-1/2 |
| 7275 | 94-1/8 | 67-5/16 | 29-1/8 | 50 | 47-5/8 | 15-3/4 | 3-11/16 | 12-1/16 |
| 8335 | 98-13/16 | 70-1/2 | 30-5/16 | 52 | 49-5/8 | 16-7/16 | 3-7/8 | 12-5/8 |
| 8930 | 104-5-/16 | 72-1/16 | 31-1/8 | 53-1/8 | 50-13/16 | 16-7/8 | 3-15/16 | 12-15/16 |
| 10120 | 105-1/8 | 75-3/16 | 32-5/16 | 55-1/2 | 53-1/8 | 17-9/16 | 4-1/8 | 13-7/16 |
| 15210 | 120-7/8 | 86-1/4 | 37 | 63-3/4 | 61 | 20-1/16 | 4-3/4 | 15-3/8 |
| 20500 | 133-7/16 | 95-1/4 | 40-15/16 | 70 | 64-15/16 | 22-7/16 | 5-1/4 | 17-1/16 |
| 25795 | 103-1/8 | 102-3/4 | 44-1/8 | 76 | 72-7/16 | 24 | 5-11/16 | 18-7/16 |
| 29760 | 151-3/16 | 107-7/8 | 46-7/16 | 79-1/2 | 76-3/8 | 25-3/16 | 5-15/16 | 19-5/16 |
| 34830 | 159-7/16 | 113-3/4 | 48-13/16 | 83-7/8 | 80-5/16 | 26-3/4 | 6-5/8 | 20-3/8 |
| 40785 | 167-11/16 | 119-11/16 | 51-9/16 | 88-9/16 | 84-5/8 | 27-15/16 | 6-9/16 | 21-7/16 |
| 44090 | 172-1/16 | 122-13/16 | 52-3/4 | 90-9/16 | 78-3/4 | 28-3/4 | 6-3/4 | 22 |
| 50705 | 180-5/16 | 128-3/4 | 55-1/2 | 94-7/8 | 90-15/16 | 30-5/16 | 7-1/16 | 23-1/16 |
| 54010 | 184-1/4 | 131-1/2 | 56-11/16 | 97-1/4 | 92-15/16 | 30-11/16 | 7-1/4 | 23-9/16 |
| 60625 | 191-5/16 | 136-5/8 | 58-11/16 | 100-13/16 | 96-7/16 | 31-7/8 | 7-1/2 | 24-7/16 |
